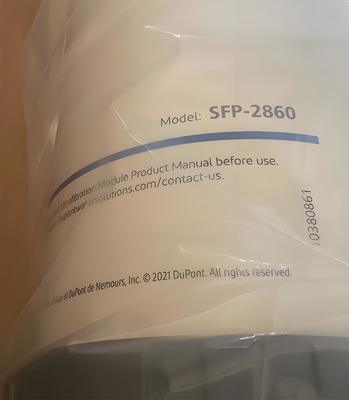

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems

  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
  • DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems
Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: Dupont
Sertifika: CE
Model numarası: SFP-2860
Belge: Model SFP-2860, SFD 2860, S...80.pdf
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 PC
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Standart İhracat Paketleme
Teslim süresi: 5- 8 iş günü
Ödeme koşulları: Western Union, T/T
Yetenek temini: Ayda 60000 adet
İletişim
Tüm ürünler
Aydınlatma Dağıtım Kutusu (33)
Elektrik Dağıtım kutusu (33)
Hava Koşullarına Dayanıklı Dağıtım Kutusu (48)
Fiberglas Muhafaza Kutusu (60)
ATS Otomatik Transfer Anahtarı (68)
EDI modülleri (139)
Ultrafiltrasyon Membran Modülleri (57)
Endüstriyel Devre Kesici (85)
güneş pv sistemi (72)
Elektrikli EV Şarj İstasyonu (21)
Modüler Zamanlama Röleleri (12)
Otomasyon Kontrol Röleleri (64)
Voltaj Regülatörü Trafosu (16)
Film Aydınlatma Balonları (136)
Ay balon ışığı (131)
Tripod LED Balonları (115)
Şişme Işık Kulesi (62)
Terminal Bloğu Aksesuarları (6)
Detaylı ürün tanımı
2860 Modül Akış Aralığı: 2.0 - 6.1 m3 /saat 2860 Modül Akış Aralığı Membran Alanı: 51 m²
2860 modül nominal gözenek çapı: 0.03 um 2860 Modül Malzemesi: PVDF
2860 modül çapı: 8 inç 2860 Modül Akış Yön ayarları: Dış basınç yapısı, çıkmaz filtreleme
Bileşen NAOCL (maks.): 2.000 mg/L Bileşen Maksimum Back Wash Baskısı: 2.5 bar
Bileşen Ana Kullanımı: Su Tedavisi Ön Tedavi Avantajlar: Yüksek filtrasyon doğruluğu

DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for RO Systems
DuPont SFP-2860 ultrafiltration membrane delivers superior water treatment performance with its advanced hollow fiber technology. Designed for industrial applications, this membrane provides excellent removal efficiency for turbidity, bacteria, and viruses while maintaining high flux rates. Its robust construction ensures reliable operation in challenging water conditions with strong chemical resistance. Ideal for reverse osmosis pretreatment, wastewater reuse, and process water purification, the SFP-2860 offers low energy consumption, reduced maintenance requirements, and extended service life. The system features easy scalability for various capacity needs and simplified maintenance procedures.
DuPont SFP-2860 UF Membrane: Advanced Pretreatment Solution for Pretreatment for RO Systems 0
Key Features
  • Precision Filtration: 0.03 μm nominal pore size removes bacteria, viruses, colloids, and particulates to protect downstream RO systems.
  • Engineered Durability: Hydrophilic PVDF fibers offer superior mechanical strength and chemical resistance (pH 2-11) for extended service life.
  • Space-Saving Design: Shorter length (1,860 mm / 73.2 in) ideal for low-ceiling installations with 51 m² (549 ft²) effective membrane area.
  • Broad Compatibility: Processes surface water, seawater, industrial wastewater, and municipal effluents.
Technical Specifications
Attribute Value
Membrane Area 51 m² (549 ft²)
Flux Range (25°C) 40–90 LMH
Max TMP 2.1 bar
Flow Rate 2.0–6.9 m³/hr
Weight (Empty) 48kg
Target Applications Industrial wastewater reuse, Seawater pretreatment for desalination, Compact containerized plants, Cooling tower blowdown recovery
Operating Parameters
Parameter SI Units US Units
Filtrate Flux @ 25ºC 40-120 l/m2/hr 24-70 gfd
Flow range 2.0 - 6.1 m3/hr 9.2 - 26.7 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 93.75 psi
Max. operating TMP 2.1 bar 30 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2-11
Performance Guarantees
  • Filtrate turbidity ≤0.1 NTU
  • Filtrate SDI ≤2.5
Important Operation Guidelines

Proper start-up of a UF system is indispensable for preparing the membranes for operational service and preventing membrane damage. Adhering to the correct start-up sequence also contributes to ensuring that the operating parameters of the system conform to the design specifications.

Before commencing the system start-up procedures, membrane pretreatment, installation of the membrane modules, instrument calibration, and other system checks should be accomplished. Kindly refer to the product technical manual.

NOTICE: NSF/ANSI 61 certified drinking water modules demand specific conditioning procedures before generating potable water. Please refer to the flushing section of the product technical manual for detailed procedures.
Regulatory Note: The utilization of this product does not inevitably ensure the elimination of cysts and pathogens from water. Effective reduction depends on the complete system design as well as the operation and maintenance of the system.
