Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water

  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
  • Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: IONPURE
Sertifika: CE
Model numarası: IP-LXM18Z-5
Belge: fgwater-ionpure-lxz-ds.pdf
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 PC
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Standart İhracat Paketleme
Teslim süresi: 5- 8 iş günü
Ödeme koşulları: T/T, Western Union
Yetenek temini: Ayda 60000 adet
İletişim
Tüm ürünler
Aydınlatma Dağıtım Kutusu (33)
Elektrik Dağıtım kutusu (33)
Hava Koşullarına Dayanıklı Dağıtım Kutusu (48)
Fiberglas Muhafaza Kutusu (60)
ATS Otomatik Transfer Anahtarı (68)
EDI modülleri (139)
Ultrafiltrasyon Membran Modülleri (57)
Endüstriyel Devre Kesici (85)
güneş pv sistemi (72)
Elektrikli EV Şarj İstasyonu (21)
Modüler Zamanlama Röleleri (12)
Otomasyon Kontrol Röleleri (64)
Voltaj Regülatörü Trafosu (16)
Film Aydınlatma Balonları (136)
Ay balon ışığı (131)
Tripod LED Balonları (115)
Şişme Işık Kulesi (62)
Terminal Bloğu Aksesuarları (6)
Detaylı ürün tanımı
18Z-5 Minimum Akış Hızı M3/Saat (GPM): 1,02 (4,5) 18Z-5 Tasarım Akış Hızı M3/Saat (GPM): 2,0-3,1 (9,0-13,5)
18Z-5 Nakliye Ağırlığı Kg (LBS) **: 99 (217) 18Z-5 İşletim Ağırlığı Kg (LBS): 74 (163)
18Z-5 Kurtarma: %90–95 Stack Avantajları: Geniş Akış Aralığı, Düşük İşletme Maliyetleri, Süper Güçlü Elektrik Yalıtımı
Yığın DC Voltajı: 0–400 Stack DC amper: 1.0–6.0
Başvuru: Endüstriyel uygulamalar
Vurgulamak:

Industrial EDI module for ultrapure water

,

Ionpure CEDI LX-Z EDI module

,

EDI module with IP-LXM18Z-5 model

Ionpure CEDI LX-Z IP-LXM18Z-5 High-Flow, Chemical-Free For Ultrapure Water Production
Product Overview
The Ionpure CEDI LX-Z IP-LXM18Z-5 is an industrial-grade electrodeionization module engineered to deliver ultrapure water with resistivity up to seventeen megohm-centimeters without chemical regeneration. Utilizing Ionpure's patented continuous electro-deionization (CEDI) technology, it replaces conventional mixed-bed ion exchange systems, offering zero chemical consumption, minimal operational costs, and uninterrupted twenty-four-hour operation for critical industrial processes.
Key Features
  • Chemical-Free Operation: Eliminates acid/alkali consumption and neutralization systems, reducing hazardous waste and operational costs by over sixty percent compared to traditional ion exchange.
  • High-Efficiency Performance: Ninety to ninety-five percent recovery rate minimizes wastewater generation. Silica removal efficiency: ninety to ninety-nine percent (dependent on feed conditions).
  • Robust Engineering: Dual O-ring seals guarantee leak-free operation at pressures up to seven bar (one hundred psi). Enhanced electrical insulation prevents current leakage.
  • Plug-and-Play Integration: Pre-installed junction box and standardized CPVC spacers enable rapid deployment in new or retrofit systems.

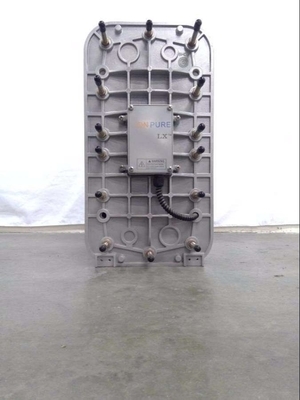

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 0
Technical Specifications
Attribute Value
Minimum Flow Rate (m3/hr/gpm) 1.02 (4.5)
Design Flow Rate (m3/hr/gpm) 2.0-3.1 (9.0-13.5)
Shipping Weight (kg/lbs) 99 (217)
Operating Weight (kg/lbs) 74 (163)
Recovery Rate 90–95%
Stack DC Voltage 0–400
Stack DC Amperage 1.0–6.0
Primary Application Industrial Processes
Quality Assurance
CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured in compliance with ISO 9001 and ISO 14000 quality and environmental management systems.

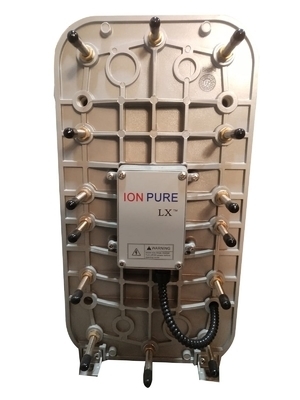

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 1
Operating Environment
For optimal performance, install indoors away from direct sunlight. Ambient temperature should not exceed 113°F (45°C) to ensure stable operation and extend service life.

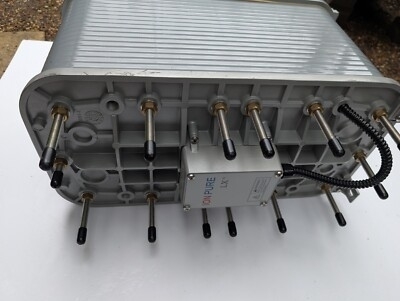

Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 2
Performance Data
Parameter Value
Product Water Resistivity Minimum Flow > 17 MW-cm*
Maximum Flow > 7 MW-cm*
Silica (SiO2) Removal 90-99% (feed dependent)
*Actual performance can be estimated using the IP-Pro prediction tool. Data based on testing at maximum inlet water conductivity (40 μS/cm).
Feed Water Requirements
Parameter Specification
Conductivity < 40 μS/cm
Source RO permeate
Temperature 5-45˚C (41-113˚F)
Total Chlorine < 0.05 ppm
Iron/Manganese < 0.01 ppm
Total Hardness < 1.0 ppm
Physical Dimensions
Model Length (mm/in) Width (mm/in)
LXM18Z 488.2 mm (19.22") 353.8 mm (13.93")
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 3
Industry Applications
Successfully implemented in power generation, petroleum refining, chemical processing, steel production, pharmaceuticals, and electronics manufacturing.
Ionpure CEDI LX-Z IP-LXM18Z-5 Industrial EDI Module for Ultrapure Water 4
For detailed application cases, visit: www.fgwater.com/Industries/
