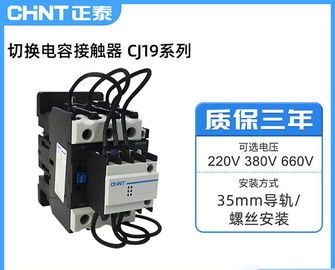

Kondansatör Anahtarlama AC Motor Kontaktörü 3P 25A ~ 170A IEC60947 TR / IEC60947-4-1
Product Details
| Ana devre akımı: | 25-95A, 115 ~ 170A | Elektrik tipi: | AC, AC / DC |
|---|---|---|---|
| Ana devre voltajı: | 600V, 220V, 380V, 110V, 24V | Kutup sayısı: | 3,4 |
| Aşama: | 3,1Phase | Frekans: | 50 / 60Hz |
| Ürün adı: | Ac Kontaktörü CJX2N-D09,3 kutuplu Ac Kontaktörü | Anma: | 95A, 115-170A |
| Standart: | IEC60947'ye, EN / IEC60947-4-1 | ||
| Vurgulamak |
AC kontaktör anahtarı,merkezi AC kontaktör |
||
Product Description
| Product Series | CJ19 |
|---|---|
| product type | Capacitor Switching Contactor |
| Product short name | CJ19 Contactor |
| Contactor application area | Power factor correction |
| Control loop type | AC |
| Coil type | AC 50/60 Hz |
| Number of poles | 3P |
| Loop contact type | 3 NO |
| Contactor level code | DPK |
| Auxiliary contact type | 1 NO + 2 NC |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Reactive power | 20 kvar on...220...240 V 50/60 Hz on <55 °C 33.3 kvar on 400...440 V 50/60 Hz on <55 °C 48 kvar on 660...690 V 50/60 Hz on <55 °C |
| protection cap | no |
|---|---|
| Auxiliary contact type | Type mechanical connection 1 NO + 1 NC in accordance with IEC 60947-5-1 Type mirrored to the main contact state 1 NC in accordance with IEC 60947-4-1 |
| Installation method | Rail mounting Base plate installation |
| Tightening torque | Power circuit: 5 Nm through the terminal |
| Rated working voltage [Ue] | Power circuit: <= 690 V AC 50/60 Hz |
| height | 180 mm |
| width | 75 mm |
| depth | 150 mm |
| product weight | 1.3 kg |
| Standards compliant | IEC 60831 GB 14048.4 IEC 60947-4-1 IEC 60070 |
|---|---|
| certified product | CCC |
| IP protection level | IP2x complies with IEC 60529 |
| Protective measures | TH conforms to IEC 60068-2-30 |
| Operating temperature | -5...60 °C |
| Storage ambient temperature | -60...80 °C |
| Working elevation | 3000 m without |
Product Highlights
Chint CJ19 Kondansatör Anahtarlama Kontaktörü 3P, 25A ~ 170A AC-3 AC-1 Bobin Gerilimi 24V, 110V, 230V, 380V main information Product Series CJ19 product type Capacitor Switching Contactor Product short name CJ19 Contactor Contactor application area Power factor correction Control loop type AC Coil ...
